Open MCP detectors are microchannel plate based devices for the detection of weak fluxes of charged particles and electromagnetic radiation, which have no input window and are designed to work in vacuum as part of analytical, measuring and scientific equipment. The MCP detectors can have a flange design, i.e. they can be mounted on a standard vacuum flange of a suitable size, being part of the vacuum system and equipped with a sight window in some cases.

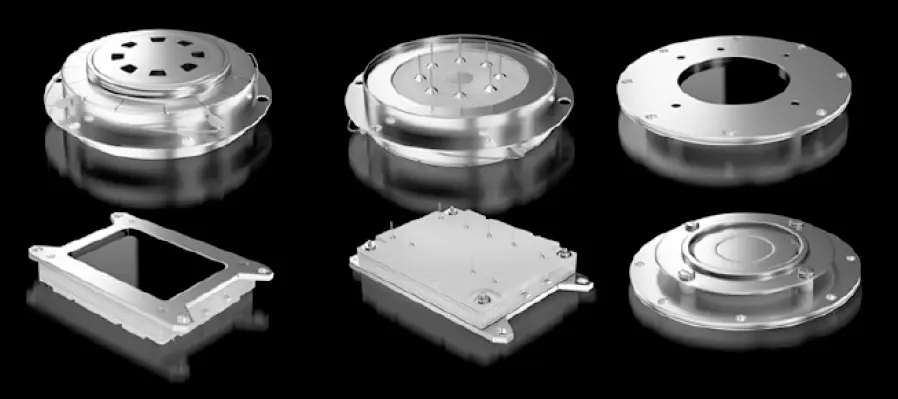

Available device versions
- round: with 18, 25, 50, 56 mm active area
- rectangular: 30×30, 54×54, 43×63, 20×90, 70×90, 100×100 mm
- single MCP, MCP chevron stack and MCP Z-stack
- with metal anode, without anode, with phosphor screen
- with a mesh in front of the MCP
- assembled on a vacuum flange
Basic parameters
| Assembly type | Gain | Single electron pulse height resolution, % | Dark count rate density, s-1×cm-2 (max) | Supply voltage, V |
|---|---|---|---|---|
| Chevron stack (2 MCPs) | 1×107 | 90 -140 | 3 | ~ 2500 |
| Single MCP | 1×104 | – | 3 | ~ 1500 |
| 3 MCPs (Z-stack) | 1×108 and more | 30-70 | 3 | ~ 3500 |
MCP Detectors
| Assembly type | Unit | with 1 MCP | Chevron stack (with 2 MCPs)) | Z-stack (with 3 MCPs) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Parameter | DS2510 | DS5010 | DS5615 | DV2510 DV256 DV258 | DV5010 | DV5615 | DZ2510 DZ256 DZ258 | DZ5010 | DZ5615 | |
| Active area | mm | 25 | 44 | 50 | 25 | 44 | 50 | 25 | 44 | 50 |
| Operating voltage | V | max. 1000 | max. 2800 | max. 3500 | ||||||
| Single electron pulse height resolution | % | exponent | max. 70 | max. 80 | max. 100 | max. 30 | ||||
| Dark count rate density | count/sec×cm2 | 3 max | ||||||||
| Gain | 1×104 min | 1×107 min | 1×108 min | |||||||
| Versions | with metal anode and phosphor screen | with metal anode | ||||||||
